This is a simple circuit of downloader AVR microcontrollers (Atmega|Attiny ). This circuit can be used to painlessly transfer hex programs to most ATMEL AVR microcontrollers without sacrificing your budget and time. It is more reliable than most other simple AVR downloader programmers available out there and can be built in very short amount of time.
AVR downloader programmer consists of in-circuit serial programmer (dongle) and small pcb with a DIP socket where you can fit your microcontroller and have it quickly downloader programmed.
Entire AVR downloader programmer has been build with using common parts and fits in the case of the serial connector. The socket pcb has been created to fit a 28-DIP AVR ATmega8 microcontroller, but you can build a socket pcb for any other AVR microcontroller out there. This AVR programmer is compatible with a popular PonyProg software that shows you a status bar of the programming progress.
AVR downloader programmer consists of in-circuit serial programmer (dongle) and small pcb with a DIP socket where you can fit your microcontroller and have it quickly downloader programmed.
Entire AVR downloader programmer has been build with using common parts and fits in the case of the serial connector. The socket pcb has been created to fit a 28-DIP AVR ATmega8 microcontroller, but you can build a socket pcb for any other AVR microcontroller out there. This AVR programmer is compatible with a popular PonyProg software that shows you a status bar of the programming progress.
Skema rangkaian Downloader AVR (Atmega|Attiny) mikrokontroller

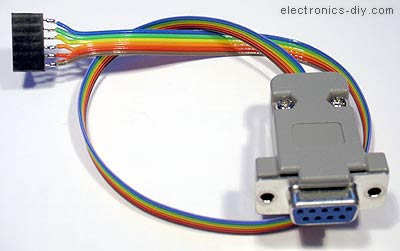

Finished AVR (ATmega|Attiny) Downloader Programmer with standard 6-PIN ICSP connector.
Make AVR Socket PCB
Finished Socket PCB AVR ATmega8 microcontroller pic
Make AVR Socket PCB
Socket PCB consists of the PCB, 28-DIP socket, 4MHz crystal resonator, or crystal with two 22pF decoupling capacitors, and two header connectors. Two-PIN connector supplies +5V voltage to the AVR microcontroller, and 6-PIN ICSP connects to AVR Programmer dongle.
Supplying microcontroller with external +5V voltage as opposed to taking it directly from computer's serial connection port ensures that the chip is receiving exactly +5V voltage and provides very reliable error free programming. +5V voltage supply for AVR mikrokontroller chip may be provided from external power supply or even better - directly from USB connection.
Supplying microcontroller with external +5V voltage as opposed to taking it directly from computer's serial connection port ensures that the chip is receiving exactly +5V voltage and provides very reliable error free programming. +5V voltage supply for AVR mikrokontroller chip may be provided from external power supply or even better - directly from USB connection.
Finished Socket PCB AVR ATmega8 microcontroller pic
